    Stand On Type 2500kg Electric Pallet Truck Jack Forklift With Folding Platform

    Ask Lasest Price
    Brand Name : M&D
    Model Number : EJE20
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200 set per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Stand On Type 2500kg Electric Pallet Truck Jack Forklift With Folding Platform

    Stand - On Type 2500kg Pallet Jack Forklift With Folding Platform

    2000kg electric pallet truck , Stand-on type with folding platform


    Brief introduction:



    EJE20R-II is a stand-on type platform pallet truck with small turning radius and super light steering system. It is widely used in large warehouse and big supermarket for medium distance transport.


    > Load capacity: 2000kg


    > Max. lifting height: 202mm


    > Height of tiller in drive postion, min./max.: 1150mm / 1430mm


    > Turning radius: 1550mm / 1600mm / 1670mm


    > Battery voltage, nominal capacity K20: 24V/210Ah


    Product specification:



    SPECIFICATIONS
    ModelEJE20R-II
    Load capacitykg2000
    Load centermm600
    Load distancemm815/865/935
    Fork height, loweredmm82
    Tyre size, frontmm250*70
    Tyre size, rearmm82*126(98)
    Additional wheels (dimensions)mm127*57
    Max. lifting heightmm202
    Height of tiller in drive position min./max.mm1150/1430
    Overall lengthmm1710/1760/1830
    Length to face of forksmm610
    Overall widthmm775
    Fork dimensionsmm53/180/1100(1150/1220)
    Width overall forksmm520/550/650/685
    Aisle width for pallets 1000*1200 crosswaysmm1910/1960/2030
    Aisle width for pallets 800*1200 lengthwaysmm2010/2010/2030
    Turning radiusmm1550/1600/1670
    Travel speed, laden/unladenkm/h7/7.1
    BatteryV/Ah24/210
    Service weightkg710


    Advantages:



    Safety and productivity


    1. There is an emergency reverse device on the handle, it will protects the operator's safety.

    2. Multi-function display on the truck, which shows battery status, hour meter, fault code, etc..

    3. CBD20R-II is configured with emergency power disconnect switch.

    4. Low speed switch in the handle, easy for operation. (Option with bypass function).

    5. CBD20R-II has stepless speed control.


    Structural


    1. Using AC motor, so it has good ramp starting performance.

    2. Water-proof and dust-proof motor, which makes the brake and motor more durable and reliable.

    3. Combined balance wheels and driving system increase stability, preventing the truck from being rocked from side to side.

    4. Parallel motor mounting on vertical drive wheel, which ensures convenience for inspection and maintenance, offers a small turning radius.

    5. Side way battery is convenient to replacement and maintenance.

    6. The Platform has great shock absorption performance, it provides a comfortable working environment for the operator and won’t feel tired easily.


    Serviceability


    1. CBD20R-II uses CANbus technology reduces wire complexity problem.

    2. Hall-effect throttle control eliminates ware components and extends its use time.

    3. Low voltage protection setting extend the battery service life time.

    4. Strong steel outer shell is easy to open for maintenance and replacement.


    Stand - On Type 2500kg Pallet Jack Forklift With Folding Platform


    Stand - On Type 2500kg Pallet Jack Forklift With Folding Platform


    Stand - On Type 2500kg Pallet Jack Forklift With Folding Platform


    Advantage :

    Compact design with medium duty operation with load capacity of 2000kg, stable and economic, easy to move in confined spaces such as retail stores, small warehouses and factories.
    - Handler designed according to ergonomic principles, easy to operate from either side.
    - Turtle speed function applied to move slowly and helps to stack goods in narrow spaces.
    - 7.9" American style battery cover, applying to 7.5" battery or any smaller industrial battery.
    - AC driving motor applied to provide excellent acceleration, good gradeability, low heat, no carbon brush and maintenance free.
    - With battery indicator, key switch and emergency off button.
    - With maintenance free 210AH battery, suitable for most demanding applications.

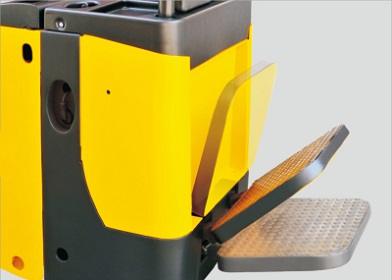

    - Optional operator`s platform is highly advantageous for large warehouses and long distance transport tasks, foldable armrests offer additional safety and comfort for operator.




    model
    EJE13-15
    EJE20
    EJE25
    EJE30
    load capacity KG
    1300/1500
    2000
    2500
    3000
    Electric controller
    USA CURTIS
    USA CURTIS
    USA CURTIS
    USA CURTIS
    overall dimensions (L*W*H)
    1630*700*1200 mm
    2000*820*1400 mm
    1918*780*1475 mm
    1918*780*1475 mm
    fork length mm
    1150*160mm
    1200*175mm
    1200*175mm
    1200*175mm
    Turning radius (outside) mm
    1450
    1760
    1760
    1760
    self weight (KG)
    200/220
    715
    715
    715

    【Heavy-duty Construction】 Our Electric Pallet Truck is made of high tensile steel, which is resistant to wear and corrosion. This electric pallet jack has weight capacity of 1.5/1.8/2/2.5/3T, can be used to lift and transport pallets easy and smoothly.


    【One Years Warranty】We offer you 100% risk-free satisfaction guarantee to let you buy with confidence. We are quite sure that you will be super-impressed with DURABILITY,HEAVY DUTY and HIGH QUALITY of our electric pallet trucks.
