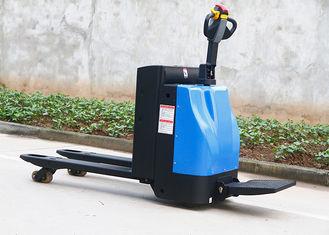

3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack from wholesalers

    Buy cheap 3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack from wholesalers
    • Buy cheap 3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack from wholesalers
    • Buy cheap 3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack from wholesalers

    3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack

    Ask Lasest Price
    Brand Name : M&D
    Model Number : EJE25
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200 set per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    3 Position Electric Pallet Truck , Round Solid Steel 2.5 Ton Pallet Truck Jack

    2.5 ton Electric pallet truck as jack pallet truck and pallet jack
    Detailed Product Description
    Capacity:2500kgMax Lift Height:190mm
    Overal Length:1770mmTravel Speed:5km/h
    Overal Width:735mmFront Wheel:85x70mm
    Driving Wheel:230x75

    2.5 ton Electric pallet truck as jack pallet truck and pallet jack


    Specification


    ModelEJE25
    Load capacityKG2500
    Load centre distancemm600
    Fork height, loweredmm85
    Wheels, number front rear(x=driven wheels)1x-2/4
    Overall widthmm735
    Fork dimensionsmm55/160/1150
    Travel speed, laden/unladenKm/h4.0 / 5.0
    Battery voltage, nominal capacity K20V/Ah24/210

    Advantage


    Electric power steering system ( EPS )
    CURTIS controller, ALBRIGHT contactor, AMP waterproof power connector
    Double cylinders rise synchronously, maximum height automatically cuts off
    The rear truck bottom is specially vevel shaped, has a good pass. Maximum 20% of the short slope.
    Floating Drive Axle Supports agile steering, high performance of uphill climbing, helps to reduce vibration and noice.
    Adopting floating balance wheel can prevent the side swing oftruck when travelling. Travel smoothly and no swing;great anti-vibration.


    2.5 ton Electric pallet truck as jack pallet truck and pallet jack


    Package:


    The trucks will be packed with pallets and plastics or cartons.

    2.5 ton Electric pallet truck as jack pallet truck and pallet jack


    Advantage :

    Compact design with medium duty operation with load capacity of 2000kg, stable and economic, easy to move in confined spaces such as retail stores, small warehouses and factories.
    - Handler designed according to ergonomic principles, easy to operate from either side.
    - Turtle speed function applied to move slowly and helps to stack goods in narrow spaces.
    - 7.9" American style battery cover, applying to 7.5" battery or any smaller industrial battery.
    - AC driving motor applied to provide excellent acceleration, good gradeability, low heat, no carbon brush and maintenance free.
    - With battery indicator, key switch and emergency off button.
    - With maintenance free 210AH battery, suitable for most demanding applications.
    - Optional operator`s platform is highly advantageous for large warehouses and long distance transport tasks, foldable armrests offer additional safety and comfort for operator.




    model
    EJE13-15
    EJE20
    EJE25
    EJE30
    load capacity KG
    1300/1500
    2000
    2500
    3000
    Electric controller
    USA CURTIS
    USA CURTIS
    USA CURTIS
    USA CURTIS
    overall dimensions (L*W*H)
    1630*700*1200 mm
    2000*820*1400 mm
    1918*780*1475 mm
    1918*780*1475 mm
    fork length mm
    1150*160mm
    1200*175mm
    1200*175mm
    1200*175mm
    Turning radius (outside) mm
    1450
    1760
    1760
    1760
    self weight (KG)
    200/220
    715
    715
    715



    【Heavy-duty Construction】 Our Electric Pallet Truck is made of high tensile steel, which is resistant to wear and corrosion. This electric pallet jack has weight capacity of 1.5/1.8/2/2.5/3T, can be used to lift and transport pallets easy and smoothly.
    【One Years Warranty】We offer you 100% risk-free satisfaction guarantee to let you buy with confidence. We are quite sure that you will be super-impressed with DURABILITY,HEAVY DUTY and HIGH QUALITY of our electric pallet trucks.
