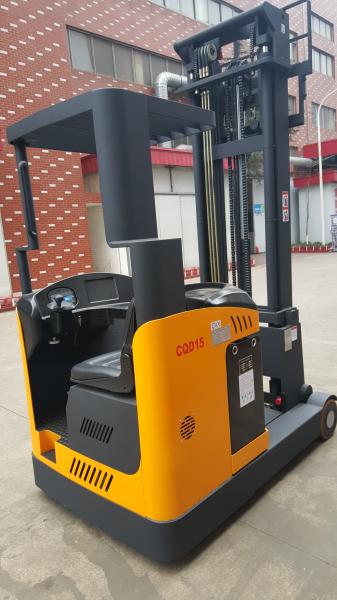

Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color from wholesalers

    Buy cheap Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color from wholesalers
    • Buy cheap Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color from wholesalers
    • Buy cheap Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color from wholesalers

    Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color

    Ask Lasest Price
    Brand Name : MD
    Model Number : CQD-20
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200 set per month
    • Product Details
    • Company Profile

    Narrow Aisle Seated Electric Pallet Stacker Reach Type Yellow Color

    2 Ton battery electric reach forklift truck for sale


    Advantages:


    STABILITY

    ·The large and strong chassis ensures sufficient stability of the forklift.

    ·The max. Lifting height can reach 9.5m meters.

    ·Use “H” type mast steel is imported from Germany, enhance the use time and stability.

    ·Large and comfortable compartment with adjustable seat reflects a concept of ergonomic design.

    ·Use double controllers to realize stepless speed regulation of both lifting and travelling.


    SAFETY AND HIGH EFFICIENCY

    ·Have safety travelling speed limited device in the mast. Travelling speed will automatic slow down when forks height is up to 5m.

    ·Full hydraulic steering system makes turning easier and more flexible.

    ·Adopting hydraulic brake for two front wheel and electric brake for driving motor, offer simple operation for travelling and braking.

    ·Integrated design of driving and steering system without chain transmission, resolve the problems of chain fall-off caused by chain transmission.


    1.large and strong chassis


    2.Germany steel mast


    3.Large and comfortable compartment

    2 Ton battery electric reach forklift truck for sale

    QD20 electric reach truck with heavy duty chassis and large compartment and unequalled visibility which can excels bigger load capacity at high reach elevations. The compact cabin design can be used in drive-in racking, the operator can works more effectively.

    Load capacity 1500kg is available.

    2 Ton battery electric reach forklift truck for sale


    SPECIFICATIONS
    ModelCQD20
    Capacity/rated loadkg2000
    Lifting heightmm3000/5000/6200/7400/12100
    Load center distancemm600
    Drive wheelmm406*152
    Fork wheelmm340*104
    Tilt of mast/fork carriage forward/backwardGrad2,2(mast)
    Height, mast loweredmm2086/2240/2740/3190
    Free liftmm0/1700/2100/2500
    Height, mast extendedmm3800/5800/7000/8200
    Height of overhead guard(cabin)mm2200
    Seat height/stand heightmm1068
    Height of cruramm270
    Overall lengthmm2440
    Length(barring fork)mm1950
    Overall widthmm1260
    Fork dimensionsmm40/120/1070
    Reach distancemm600
    Aisle width for pallets 1000*1200 crosswaysmm2800
    Aisle width for pallets 800*1200 lengthwaysmm2930
    Turning radiusmm1820
    Travel speed, laden/unladenkm/h8/8.3
    Lift speed, laden/unladenm/s0.19/0.2
    Lowering speed, laden/unladenm/s0.5/0.4
    BatteryV/Ah48/500
    Service weightkg3300/3700/3800/3900

    China factory 2 ton forklift reach truck narrow aisle seated electric reach truck


    EASY MAINTENANCE

    ·Battery changing offers two type methods:

    1) Side way battery changing by a trolley.

    2) Automatic push-out and pull-in function by a simple battery handle controller.

    ·Bolt fixed back cover is easy to open for daily maintenance.


    OPTION

    ·Joystick hydraulic controller.

    ·LCD display and camera (LCD for cold storage are available).

    ·Height selection and height position system.

    ·EX explosion proof type.

    ·Cabin.
