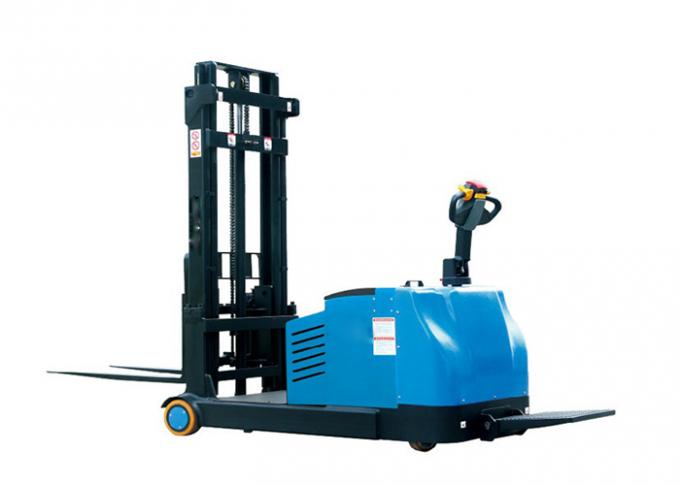

    1000Kg Load Capacity Electric Pallet Stacker , Pedestrian Pallet Stacker With Emergency Stop Switch

    Ask Lasest Price
    Brand Name : M&D
    Model Number : CDD10
    Certification : CE,ISO
    Price : negotiable
    Supply Ability : 500units/month
    Delivery Time : 3-20days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    1000Kg Load Capacity Electric Pallet Stacker , Pedestrian Pallet Stacker With Emergency Stop Switch

    1000 Kg Max Load Capacity Pedestrian Pallet Stacker With Emergency Stop Switch

    Detailed Product Description
    Max Capacity:1000kgMax Lift Height:2500mm
    Wheel Base:1430mmFork Demision:100/40/1070mm
    Load Center:500mmVoltage And Capacity:24v/210Ah

    1 ton electric pallet stacker and electric pedestrian stacker​​


    Specification


    ModelCDD10-20/25
    Max load capacityKg1000
    Load centermm500
    Travel speed(load/unload)Km/h4 / 5
    Lifting speed(load/unload)mm/s100 / 180
    Fork demisionmm100/40/1070
    Turning radiusmm2130
    Voltage and capacityV/Ah24/210

    Advantage


    CURTIS controller, ALBRIGHT contactor, AMP waterproof power connector;


    Side-way battery with roll-out system is very convenient to replace batteries;


    The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate;


    With emergency stop switch and eklectricity lock button,and multi-valve controlling levers, ergonomic for operation.



    1000 Kg Max Load Capacity Pedestrian Pallet Stacker With Emergency Stop Switch


    Advantage:


    1,EPS Electric Power Steering System,Operation force light,Save energy,Low noise.

    2.Durable and rigid frame construction ensure the stackers to handle heavy loads.

    3.Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.

    4.Power sylinder prevents wheels slip.

    5.Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.

    6.limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.

    7.Robust and rigid mast configuration optimize stackers lifting stability and safety.

    8.Vertical drive system,Driving floating adjustable system design.

    9.Wide ligs

    10. handling equipments




    Mast Options :

    CDD14-920 CDD14-930 CDD16-D920 CDD16-D930 .jpg
