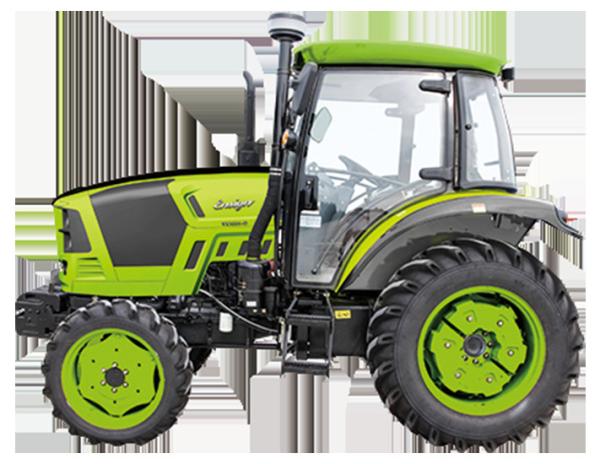

4WD green compact utility tractors,small farm tractors,small garden
tractor
Excellent Power Performance
Quanchai engine is of standard configuration and Xinchai engine is
optional. Torque reserve of the engines are big and power is
strong.
Power emission and performance are upgraded with low fuel
consumption, high reliability and advanced technology.
Comfortable, Artistic and Humanized Design
New streamline design of the tractor body and attractive
appearance.
Flat floor, suspend pedal, Side-placed operating levels
double action clutch and full hydraulic steering system make the
operation easy and flexible.
Shock absorption floor is used. Luxurious shock absorption cab is
optional. Sealing is good and noise is low.
Smart and High-efficient Drive System
12F+12R gear shift is easy and flexible for operating. Speed match
is reasonable and working efficiency is high.
Synchronizer shifting is optional for easy & flexible operating and
failure rate is low.
Reinforced closed front axles with high reliability.
Reliable and Stable Working Devices
High reliability force level adjusting elevator is used, and strong pressure elevator is optional.
Hydraulic output is optional. High efficient work can be performed
in various farmlands and transportation working sites.
PTO 540/720r/min is standard. And 540/1000r/min or 760/1000r/min is
optional. Various agricultural working devices can be equipped.
Technical Parameters
| Drive Type | 4WD |
Engine Rated Power(kW) | 40.5 |
| Engine Rated Speed(r/min) | 2400 |
Engine Oil Supply System | Electronic unit pump |
Overall Dimension( L*W*H) (mm) | 4000×1800×2700(cab roof)/2330(safety shelf ) |
Min. Operating Weight(kg) | 2620/2360 (safety shelf) |
Tire Specification | 8.3-24/14.9-30 optional: 8.3-24 paddy tire/11-32 paddy tire |
| Transmission tyoe | Mechanical stepped shift speed |
| Transmission (forward/reverse) | 12F+12R |
| Front Wheel Track(mm) | 1450 |
| Rear Wheel Track(mm) | 1400 |
| Wheel Base(mm) | 2000 |
| PTO Shaft Speed(r/min) | 540/760 optional: 540/1000, 760/1000 |
| |
| |
chinese small farm tractor,18 4-34 tires farm tractor
1.Adopt Xinchai diesel engine, good reliability, large reserve of
torque, low fuel consumption, high economic efficiency;
2.Double-function cluth, 10 inches, high transimission capacity,
reliable, comfortable manipulation;
3.Gearbox using 4×3(1+1) engaging sleeve, shuttle-type gearshift,
there are 12 forwards gears, 12 reserves gears, reasonable match
between the gears, and have high efficiency;
4.Independent power take off device, smooth transmission, large
capacity, speed(540/760, 540/1000 r/mim) for selection to meet the
different operation requirements;
5.Full hydraulic front wheels steering, independent oil circuit for
steering system, manipulating flexible, realiable and save energy;
6.Adopt hrdrostatic disc-type brakes, a large braking torque, the
braking effect is good;
7.Adopt high pressure tyoe lifting device, realiable, easy
maintenance, multi-hydraulic output can be optioned;
8.Final transmission adopts planetary gear mechanism, compact
structure, large reduction ratio;
9.New streamlined appearance, generous, modern, fashion;
10.Control levers can be mounted at side as optional, more
convenient and comfortable.
