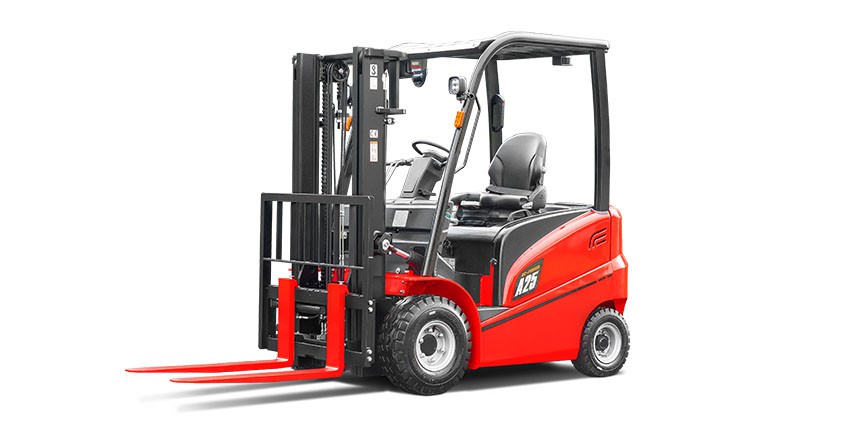

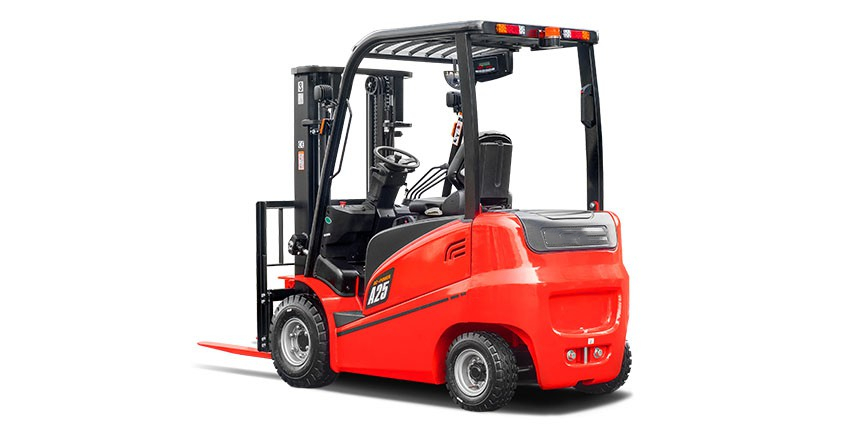

Features Of Fork Lift:
1. Wide View Mast, Hydraulic Transmission
2. AC Motor
3. Standard Backrest
4. Long-Life Tires,Toyota Seat
5. TCM Technology
6.
Good Looking Appearence,Strong Stucture
Advantage :
1.High-Strength Overhead Guard
2.Famouse Shell Brand Hydraulic Oil
3.ISO14001 Environmental Certification,All nuts use zinc clear.
4 .Korean KCC painting
5. Wide view Mast
6. Battery can be taken out easily(two way,From top and from side)
7.LED lamp
8.Famous brand battery and charger
9.Curtis or Zapi AC controller
10.Reasonable structure,better heat dissipation for controller
11.Battery water automatic replenish for optional
12.Powerful AC driving motor applied to reduce maintenance cost and
increase the overall performance.
STABILITY
● The internationally advanced parallel arrangement is adopted for
traction motor, and the machine is characterized by sinking type
designed battery layout, resulting in lower gravity center and
better stability of entire truck.
● Flexible steering system, with smaller turning radius, allows
turnaround within confined passageway.
COMFORT
● The adjustable, small-diameter steering wheel with tilt designed
based on ergonomics offers good hand feeling, and the seat can also
be adjusted forward and backward, which can provide best driving
position for the operator.

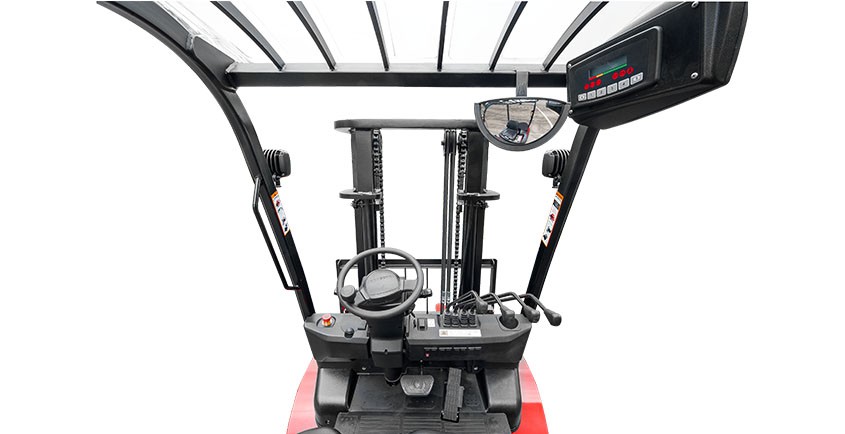

● Easy to see display is located to overhead, increase visibility
and operability, thus with higher driving safety.
● Featured with low noise, energy saving and no exhaust emission,
all the performances of this vehicle meet the requirement of
eco-friendliness.
RELIABILITY&SAFETY
● Famous brand controllers, connectors, battery plug, emergency
switch and dashboard are applied so as to ensure the reliability of
the performance and easy operation.
● Major parts such as chassis, drive axle, steering axle, and mast
are all designed with high strength to satisfy high-strength work
conditions.
● Emergency switch is in standard specification which meets the
Euro safety regulation.
● Besides, there’s overloading protection for electronics and
hydraulic system.
ADVANCED
● EPB (Electronic Parking Brake), which realizes intelligent
parking brake, with lower labor intensity of the operator, and
higher safety.
● Soft landing system.
● Full AC configuration includes AC traction motor + AC pump motor;
with higher performance of entire truck, and longer battery life.
MAINTENANCE
● The fully opened battery cover makes the battery service rather
easy and the cover of the controller can be easily opened.
● The brushless, maintenance-free AC drive motor reduces operation
cost significantly.
● The option of side roll out battery is very convenient for fast,
efficient, and safe, and is suitable for continuous work
conditions.
Parameters
| General | | | | |
| Model | | FB20 | FB25 |
| Power Type | | Electric | Electric |
| Load Capacity | kg | 2000 | 2500 |
| Load centre | mm | 500 | 500 |
| Tyre | | | | |
| Tyre | | | Pneumatic Tyre | Pneumatic Tyre |
| Front Tyre | | 7.00-12-12PR | 7.00-12-12PR |
| Rear Tyre | | 18×7-8-14PR | 18×7-8-14PR |
| Overall Dimension | | | | |
| Lift Height | mm | 3000 | 3000 |
| Fork Size | L×W×T | mm | 1070×120×40 | 1070×120×40 |
| Mast Tilt Angle | F/R | . | 6/12 | 6/12 |
| Mast Lowered Height | mm | 2070 | 2070 |
| Mast Extended Height(with backrest) | mm | 4070 | 4070 |
| Length to face of fork(Without fork) | mm | 2360 | 2360 |
| Overall Width | mm | 1160 | 1160 |
| Overhead Guard Height | mm | 2240 | 2240 |
2.0 Ton Electric Forklift advantages:
-4-Wheel
Electric Forklift, stable and economic.
-High-Strength Overhead Guard
-Famouse Shell Brand Hydraulic Oil
-ISO14001 Environmental Certification,All nuts use zinc clear.
Low access steps. Large, level foot well with automotive pedal
lay-out.
Floating cab module cushions road shocks and vibrations.
Clear view: mast and fork carriage allow for excellent visibility
of the load.
Hydraulic power steering is precise, requiring the minimal amount
of effort without kick-back.
Comfort Display provides up-to-date information on vital vehicle
conditions at a glance.
-Famous brand battery and charger,like Germany brand battery-HOPPECKE.
-Reasonable structure,better heat dissipation for controller
-Battery water automatic replenish for optional
-Powerful AC driving motor applied to reduce maintenance cost and
increase the overall performance.
Application Area:
1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics
If you have any other questions,please contact us directly.Our
forklift are all with high quality,and you can choose any other
engine to equip.It can be produced according to your idea.And we
invite you to visit our factory
We supply full range Forklift Trucks
Diesel Forklift: 1.5ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5
ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg Forklift: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5
ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric Forklift: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton,
3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty Forklift: 12 ton, 13ton, 14ton, 15ton, 16ton, 18ton,
20ton, 25ton, 32ton, 46 ton
Electric Stacker, Electric Pallet Truck
Full-electric Stacker: Loading Capacity 1000kg, 1200kg, 1400kg,
1600kg, 2000kg
Electric Pallet Truck: Loading Capacity 1500kg, 2000kg, 2800kg,
3000kg, 3500kg.
