    Four Wheel Battery Powered Forklift Customised Color 4011mm Max Lift Height

    Ask Lasest Price
    Brand Name : M&D
    Model Number : FB-25
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200set per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

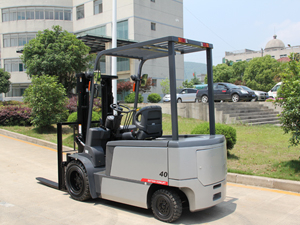

    Four Wheel Battery Powered Forklift Customised Color 4011mm Max Lift Height


    AC.DC OR AC/AC 4-Wheel Electric Forklift


    Rated capacity:1.5-4.0T ;

    Lift height: 3000-6000mm;

    Full AC motor optional, ZAPI controller

    48V/80V big capacity battery and low noise;

    Non-pollution environmental friendly;

    Mini design can work in warehouse;

    AC controller and CE ISO high quality certificated.


    Our counterbalanced 4T electric forklift is a kind of material handling equipment that adopts storage battery to provide power. It is suitable for those areas that needs high requirements of environmental protection, such as indoor place and warehouse. This forklift enjoys non-polluting and energy-saving advantages. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. Our company supplies lemon yellow type and silver 4T electric forklift. we can customize different types of material handling equipment according to customers' demands.


    Parameters

    SPECIFICATIONItemFB15FB20FB25FB30FB35FB40
    Load capacitykg150020002500300035004000
    Load centermm500500500500500500
    DIMENSIONSMax. lifting height(VM300)mm300030003000300030003000
    Turning raduis(outside)mm178019802000214022002450
    Overall length(without fork)mm195522452285251025602810
    Total widthmm107011501150122512251390
    Mast height (fork lowering)mm199519951995207520752150
    Height to head guardmm210021452145219021902425
    Fork size (L×W×T)mm920*100*351070*122*401070*125*451070*122*501070*150*50
    Tilt range(forward/backward)deg6/126/126/126/126/126/12
    Truck weight(with standard battery)kg269034403820466049605260
    TIRESfront/rear2/22/22/22/22/22/2
    front axle6.00-9-10-10PR21*8-9-16PR28*9-15-12PR28*9-15-14PR250-15-16PR
    rear axle16*6-8-10PR18*7-8-14PR18*7-8-14PR18*7-818×7-8
    DRIVE LINEBatteryV/AH48/40048/45048/56572/48072V-56080V-550
    Drive motorkw/60min888111111
    Hydraulic motorkw/5min8.28.68.6101013
    Control typeDriving AC control type , lifting DC control type
    • Competitive Advantages
    • This forklift can be operated flexibly. There are three converting modes that can provide support for skilled drivers.
    • 4T electric forklift is fitted with CURTIS controller, which saves the repair cost, prolongs the service life of battery and reduces the operation cost of forklift truck.
    • The highly integrated digital combined dashboard of this material handling equipment is of high reliability, high accuracy and good visibility. It could display the trouble code and enable the operator to repair the machine in time.
    • The high strength fiber glass battery board is soundproof and heat-insulated.
    • The control system of 4T electric forklift is provided with low-voltage protection function. When the discharge capacity of battery reaches 80%, the protection system will start automatically and the hydraulic lifting system will stop working, ensuring that this material handling equipment can be driven to charging station for battery charging in time.
    • we provides best service and accessories. our service network can solve users' worry by supplying the timeliest service and the highest quality accessories.

    Main Parts
    4T electric forklift mainly consists of power unit, transmission, steering device, working device, hydraulic system and brake device.

    Configurations
    Optional configurations for this material handling equipment include solid tire, double front tire, no mark tire, alarm flash, rear work light, widened fork holder, supper high backrest, sheath of fork, windscreen with wiper, damping chair, safe belt, customized color, lengthened fork, rob, boom, job, bucket, hinged forks, side shift, rotator, fork petitioner, telescopic fork, drum clamp, pull-push, paper roll clamp, bale clamp, carton clamp, etc.

    • Attentions
    • 4T electric forklift is suitable for indoor logistics transport.
    • Drivers who have been trained and hold driving licenses can drive this forklift.
    • Check each control and alarm device before driving this material handling equipment. If there is damage or defect, it must be operated after repair.
    • Material handling should not exceed the specified load. The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
    • Stable starting, steering, driving, braking and stopping are quite necessary. When we drive the 4T electric forklift on wet or slippery road, we need to slow down while steering.
    • When this material handling equipment loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.

    Packaging and Transportation
    Shipping By Container.

    As a professional manufacturer and supplier of material handling equipment in China, we mainly offers internal combustion counterbalance forklift and gasoline forklift truck. Our annual production capacity can reach 10,000 units. We have obtained ISO9001 quality system certificate, special equipment manufacturing license, CE certificate and SGS certificate. Till now, we have established exclusive selling agencies in Australia, Russia, the United Kingdom and Northern Ireland, Korea and Iran. Our 4T electric forklifts have been sold to Southeast Asia, South America, Africa and Europe


    new generation electric counter balance forklift advantages:

    -High efficiency driving motor

    -Multi-functions instrument- new Curtis display

    -Front dual driving motors

    -Anti-slip rubber floor mat

    -Solid tires

    -Emergency disconnect button

    -LED headlight

    -Rear combination lights

    -Panoramic rear view mirror

    -Wide vision mast

    -Adjustable steering column

    -Full electric controlled travelling, lifting and steering

    -Horn and reversing buzzer

    -Tool box and file folder

    -CAN-BUS system

    -Battery lateral extraction

    -Low noise gear pump

    -Full hydraulic steering

    -Full suspension seat with belt and switch

    -Operator presence system

    -Rear handle with horn

    Application Area:

    1.Warehouse

    2.Port

    3.Factory

    4.Distribution Center

    5.Logistics


    If you have any other questions,please contact us directly.Our forklift are all with high quality,and you can choose any other engine to equip.It can be produced according to your idea.And we invite you to visit our factory



    We supply full range Forklift Trucks

    Diesel Forklift: 1.5ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton

    Gasoline/Lpg Forklift: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton

    Electric Forklift: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton

    Heavy Duty Forklift: 12 ton, 13ton, 14ton, 15ton, 16ton, 18ton, 20ton, 25ton, 32ton, 46 ton

    Electric Stacker, Electric Pallet Truck

    Full-electric Stacker: Loading Capacity 1000kg, 1200kg, 1400kg, 1600kg, 2000kg

    Electric Pallet Truck: Loading Capacity 1500kg, 2000kg, 2800kg, 3000kg, 3500kg.
