10 Ton HIGHLY ENERGY-SAVING HIGH EFFICIENCY HIGH SECURITY Reach
Stacker for Containers
The reach stacker SRSC1009-6E is mainly used in ports, wharfs and
storage yards to handle, transfer and stack various containers and
other materials. With many product series such as heavy, overweight
hurdling, light, empty container and off-road reach stackers, SANY
reach stacker SRSC1009-6E can accommodate various industries,
bringing you the maximum economic benefit.
Safe and Reliable
Dynamic Anti-rollover Protection
Uses intelligent control technology to detect equipment's real-time
working parameters and automatically adjust the operating status
under dangerous conditions to prevent rollover, keeping you safe on
the job.
Anti-collision Technology

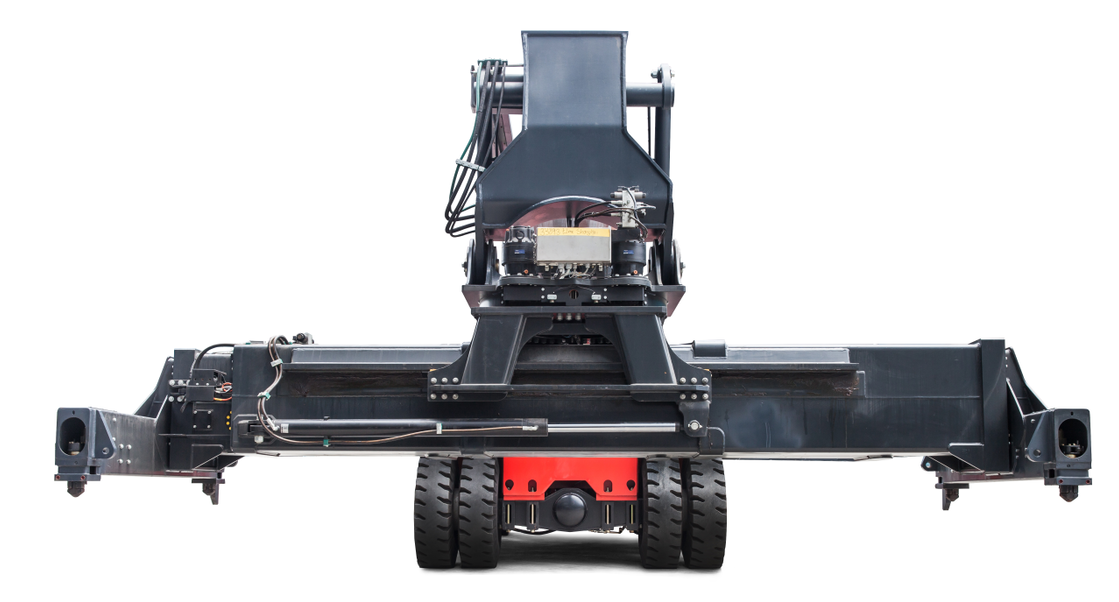

By using intelligent control to regulate the positions of spreaders
and booms, the reach stacker can effectively prevent collision
among the spreader, frame and boom. This technology helps eliminate
accidents by faulty operation.
Automatic Fire Extinguishing
The pipeline network has an automatic fire extinguisher with strong
spray. It is capable of acting as a fire alarm, anti-flaming and
fire extinguishing.
Solid Tire Suspension Technology
It features a solid tire flexible damping system to achieve safer
operation and lower maintenance cost. Combined with flexible
suspension technology, the technology significantly reduces the
shocking load while raising operation comfort and prolonging
component longevity.
Automatic Braking Technology upon Reversing
By using laser scanning and graphic identification technology, the
machine can detect people or obstacles within the driving route
with a high degree of precision. The reach stacker then brakes
automatically to prevent accidents.
Reliable Structure Design
Featuring a joint Chinese-German design, the machine underwent a
full-digit prototype design system. During development, the design
underwent finite element analysis (FEA) and dynamics simulation
analysis, as well as strict endurance and vibration tests.
Reliable Power System
Using world-famous engines like Volvo and Cummins, which combine
advanced power matching and control technology, SANY equipment is
optimized for dynamic performance. The engine and gearbox are
protected, significantly prolonging their longevity.
High Efficiency

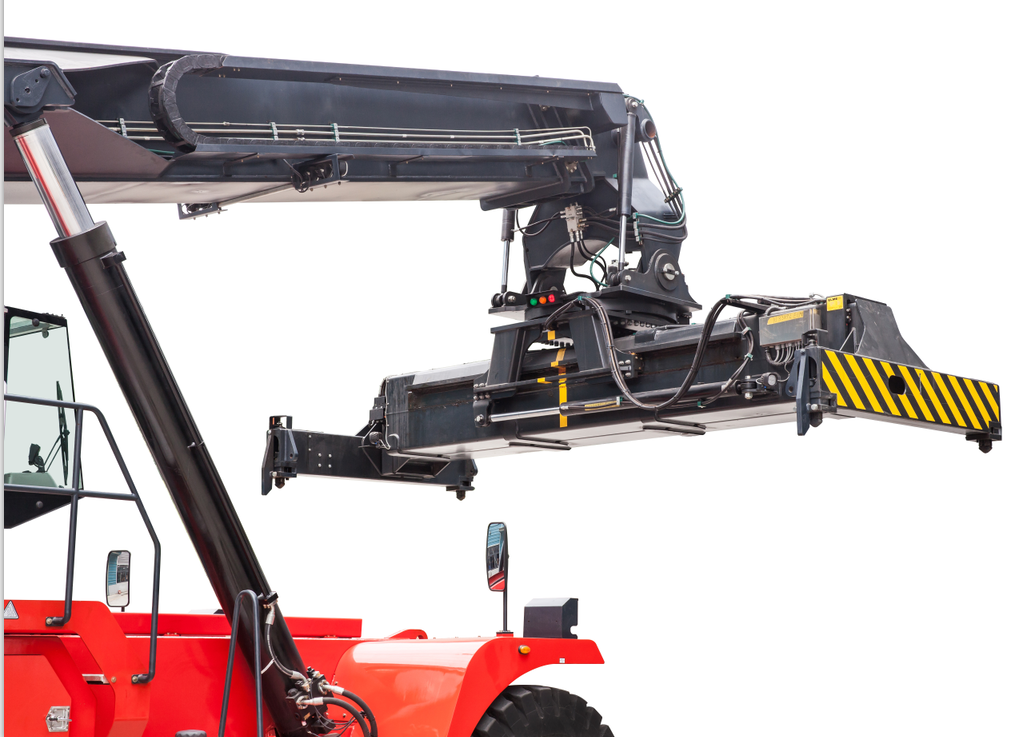

Vertical Lifting Technologies
The intelligent controller monitors the boom's parameters in
real-time, automatically adjusting the position of the boom to
allow vertical lifting of the spreader. This technology makes
stacking safer and improves work efficiency.
Efficient Control Technology
The centralized joystick's inching control has up to one millimeter
of precision. All the spreaders' motions are under proportional
control, providing an experience of man-machine unification. The
machine also has a multi-motion linkage design to operate faster
and more efficiently.
Comfortable Operation Environment
The operator-oriented design includes a wide viewing angle, and the
controls are easily accessible.
Bulk Container Handling Technology
SANY's bulk reach stacker broke through the bottleneck of bulk
container handling and simplified the handling process,
dramatically improving work efficiency.
Energy Saving
Hydraulic Load Sensing System
The reach stacker features high precision flow control by
automatically adjusting the pump displacement according to load.
Because this system is much more precise, it drastically decreases
the amount of energy wasted.
Dynamic Power Matching Control System
The machine features a dynamic power system that adjusts engine
speed based on changes in load. The output power automatically
accommodates loading and working conditions, reducing energy
consumption.
Lighter Design
We have optimized the structure to make it lighter and stronger.
| Truck Model | MDRS45 |
| Equipment Code | CCZ5 |
| Rated capacity(Kg) | 31000(Front Distance1900mm)(5-HIGH) |
| 45000(Front Distance1900mm)(4-HIGH) |
| 31000(Front Distance3850mm)(4-HIGH) |
| 15000(Front Distance6350mm)(3-HIGH) |
| Maximum lift height(mm) | 14850 |
| Load centre distance(mm): | |
| Maximum lift speed(mm/s): | 380/240 |
| Maximum lower speed(mm/s): | 300/250 |
| Travel speed(Km/h) | 1st 4/4 |
| 2nd 9/9 |
| 3rd 16/16 |
| 4th 25/25 |
| Gradeability (%) | 30/15 |
| Under clearance(mm) | 400 |
| Minimum turning radius(mm): | 8200 |
| Brake stopping distance (m): | <=7 |
| Overall length(mm) | 11350 |
| Overall width(mm) | 6042 |
| Overall height(mm) | 4600 |
| Wheel base(mm) | 6000 |
| Tread(mm) | FRONT 3033 |
| REVERSE 2750 |
| Spreader | SPREADER ELME 817 |
| Service weight(Kg) | 73000 |
| Engine | Model M11-C330 |
| Displacement 10800cc |
| Rate Power/SPEED 246 Kw /2100 rpm |
| MAX.TORQUE/ SPEED 1458/1300 rpm |
| Tyre | Front 4X18.00-25-40PR |
Rear 2X18.00-25-40PR
|
