    1.5 Ton Capacity Manual Pallet Stacker For Short Distance Transportation

    Ask Lasest Price
    Brand Name : MD
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 1000 set per month
    • Product Details
    • Company Profile

    1.5 Ton Capacity Manual Pallet Stacker For Short Distance Transportation

    1500kg Capacity Manual Pallet Stacker For Short Distance Transportation

    Detailed Product Description
    Capacity:1500kgMax. Lifting Height:1600mm
    Height, Mast Lowered:2050mmHeight, Mast Extended:2155mm
    Width Overall Forks:950mmAisle Width For Pallets 1000*1200 Crossways:1975mm
    Aisle Width For Pallets 800*1200 Lengthways:1915mmTurning Radius:1200mm
    Service Weight:294kg

    1.5 ton 1500mm economic manual pallet stacker with C type strong mast


    Quick Details:

    Capacity: 1500kg

    Height, mast lowered: 1940mm

    Max. lift height: 1500mm

    Height, mast extended: 2000mm

    ​Fork dimensions: 48/100/850mm

    Width overall forks: 980mm

    ​Aisle width for pallets 1000*1200 crossways: 2050mm

    Aisle width for pallets 800*1200 lengthways: 2040mm​

    ​Turning radius: 1245mm

    ​Lift speed, laden/unladen: 20mm/time


    Advantages:

    • ​​​Manual pallet stacker with adjustable forks and special handle.

    • ​1.5ton capacity, 1.5meter lifting height.

    • ​With Nylon wheels.

    • Robust Steel profile construction.

    • An economical lift to handle tasks from transporting dies and moulds skids and pallets.

    • Sturdy and compact enough to fit through standard doors and to operate in congested areas.

    • Precision engineered for smooth performance and exceptional durability.

    • Lifting function operated by foot and hand controls.

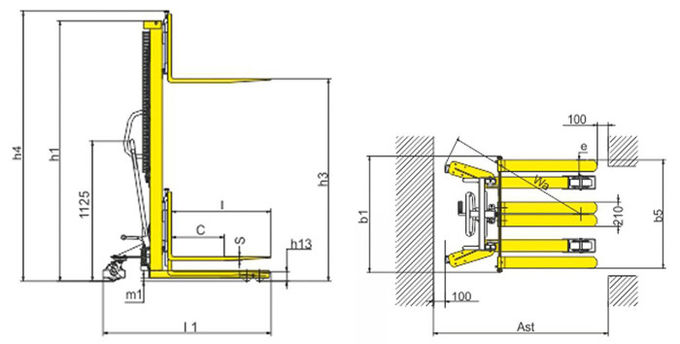

    SPECIFICATIONS
    ModelSJJA1500
    Load capacity/rated loadkg1500
    Load center distancemm400
    Fork height, loweredmm97
    Height, mast loweredmm1940
    Max. lifting heightmm1500
    Height, mast extendedmm2000
    Overall lengthmm1350
    Overall widthmm1050
    Fork dimensionsmm48/100/850
    Width overall forksmm980
    Ground clearance, centre of wheelbasemm25
    Aisle width for pallets 1000*1200 crosswaysmm2050
    Aisle width for pallets 800*1200 lengthwaysmm2040
    Turning radiusmm1245
    Lift speed, laden/unladenmm/time20
    Lowering speed, laden/unladenmm/sManual control
    Service weightkg283
