Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency from wholesalers

    Buy cheap Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency from wholesalers
    • Buy cheap Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency from wholesalers
    • Buy cheap Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency from wholesalers

    Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency

    Ask Lasest Price
    Brand Name : MD
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 1000 set per month
    • Product Details
    • Company Profile

    Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency

    Adjustable Manual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency

    Detailed Product Description
    Capacity:1000kgMax. Lifting Height:1600mm
    Height, Mast Lowered:2050mmHeight, Mast Extended:2155mm
    Width Overall Forks:950mmAisle Width For Pallets 1000*1200 Crossways:1975mm
    Aisle Width For Pallets 800*1200 Lengthways:1915mmTurning Radius:1200mm
    Service Weight:294kg

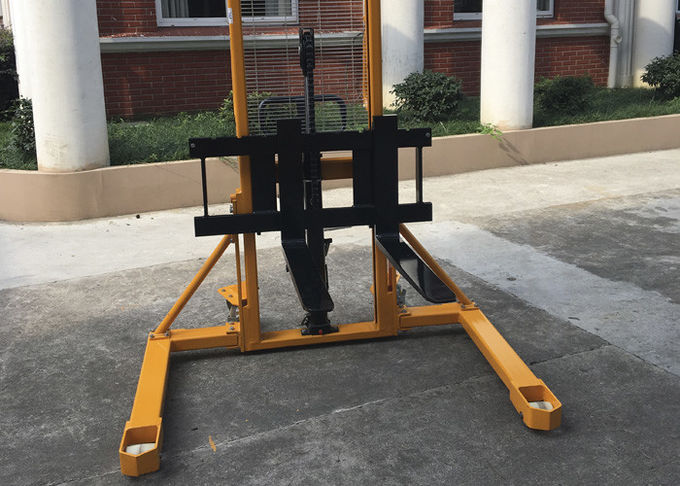

    Adjustable forks 1000kg manual pallet stacker with straddle legs


    Quick Details:

    Capacity: 1000kg

    Height, mast lowered: 2050mm

    Max. lift height: 1600mm

    Height, mast extended: 2155mm

    ​Fork dimensions: 30/100/800(1060)mm

    Width overall forks: 950mm

    ​Aisle width for pallets 1000*1200 crossways: 1975mm

    Aisle width for pallets 800*1200 lengthways:1915mm​

    ​Turning radius: 1200mm

    ​Lift speed, laden/unladen: 25mm/time


    Advantages:

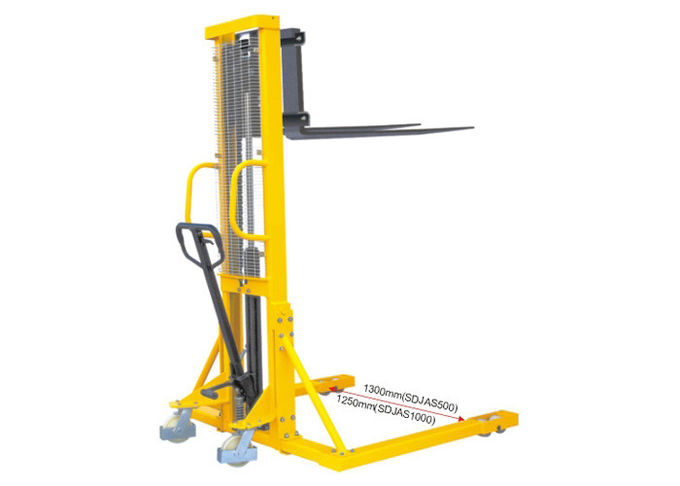

    • ​​With straddle legs, inner width between two legs is 1250mm.

    • Forged adjustable forks.

    • Max. lifting height 1.6 meter.

    • Strong C steel mast makes the manual pallet stacker rigidity and durability.

    • Two way for lifting, by handle or foot.

    • With the guard of wheels, operator will be very safe during work.

    • High efficiency pump with imported sealing ring, dustproof ring.

    • ​Suitable for long pallets or goods, and closed pallets.
    SPECIFICATIONS
    ModelSDJAS1000
    Load capacity/rated loadkg1000
    Load center distancemm500
    Fork height, loweredmm70
    Height, mast loweredmm2050
    Max. lifting heightmm1600
    Height, mast extendedmm2155
    Overall lengthmm1300/1560
    Overall widthmm1450
    Fork dimensionsmm30/100/800(1060)
    Width overall forksmm950
    Ground clearance, centre of wheelbasemm25
    Aisle width for pallets 1000*1200 crosswaysmm1975
    Aisle width for pallets 800*1200 lengthwaysmm1915
    Turning radiusmm1200
    Lift speed, laden/unladenmm/time25
    Lowering speed, laden/unladenmm/sManual control
    Service weightkg336

    Adjustablemanual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency

    Adjustablemanual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency
