    1500kg Capacity Manual Pallet Stacker For Short Distance Transportation

    Ask Lasest Price
    Brand Name : MD
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 1000 set per month
    • Product Details
    • Company Profile

    1500kg Capacity Manual Pallet Stacker For Short Distance Transportation

    1500kg Capacity Manual Pallet Stacker For Short Distance Transportation

    Detailed Product Description
    Capacity:1500kgMax. Lifting Height:1600mm
    Height, Mast Lowered:2080mmHeight, Mast Extended:2080mm
    Overall Width:755mmTurning Radius:1380mm
    Lift Speed, Laden/unladen:21mm/timeLowering Speed, Laden/unladen:Control By Hand
    Service Weight:239kg

    Fixed forks 1500kg capacity manual pallet stacker for short distance transportation


    Quick Details:

    Capacity: 1500kg

    Height, mast lowered: 2080mm

    Max. lift height: 1600mm

    Height, mast extended: 2080mm

    ​Fork dimensions: 61/170/1100(1150)mm

    Width overall forks: 550mm

    Aisle width for pallets 1000*1200 crossways:2112mm

    ​Aisle width for pallets 800*1200 lengthways: 1945mm

    ​Turning radius: 1380mm

    ​Lift speed, laden/unladen: 21mm / time


    Advantages:

    • ​​1500kg manual pallet truck with 1.6 meter lifting height.

    • Strong C steel mast.

    • Lifting by moving the handle up and down (or tread the foot pedal), falling is by pinching the black knob.

    • The reasonable structure design makes the transportation work becomes very easy.

    • The manual pallet stacker is suitable for mould processing industry, logistics industry and warehouse, wharf, supermarket and other places.

    • The standard mast and the width of the forks are suitable for all kinds of pallets in the world.

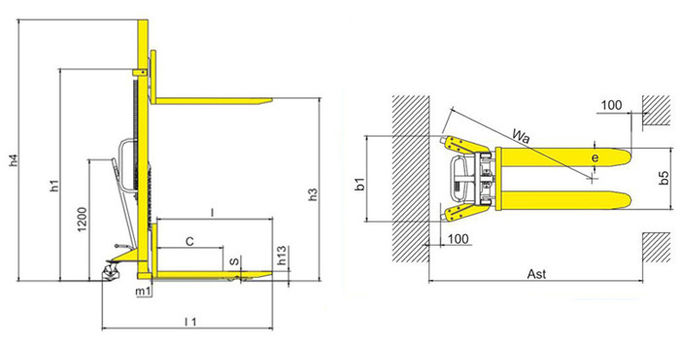

    SPECIFICATIONS
    ModelSDJ1500
    Load capacity/rated loadkg1500
    Load center distancemm400
    Fork height, loweredmm90
    Height, mast loweredmm2080
    Max. lifting heightmm1600
    Height, mast extendedmm2080
    Overall lengthmm1655/1705
    Overall widthmm755
    Fork dimensionsmm61/170/1100(1150)
    Width overall forksmm550
    Ground clearance, centre of wheelbasemm25
    Aisle width for pallets 1000*1200 crosswaysmm2112
    Aisle width for pallets 800*1200 lengthwaysmm1945
    Turning radiusmm1380
    Lift speed, laden/unladenmm/time21
    Lowering speed, laden/unladenmm/sManual control
    Service weightkg236
