2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker from wholesalers

    Buy cheap 2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker from wholesalers
    • Buy cheap 2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker from wholesalers
    • Buy cheap 2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker from wholesalers

    2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker

    Ask Lasest Price
    Brand Name : M&D
    Model Number : FSEP3-2.7
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200 set per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker

    Self propelled order picker is one kind of material handling equipment which are widely used in warehouse and supermarket. Order picker is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency.

    Self propelled order picker is famous for its small compact body size,simple structure and very low failure rate. Small scissor lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.


    Detailed introduction to Electric Aerial Order Picker:

    Order Pickers

    Standard equipment
    Can Bus Technology
    Proportional controls

    Battery charge indicator

    Forklift pockets

    Safety brackets

    Low voltage alarm

    Emergency down button

    Charger protection

    Controller temperature protection

    2WD

    Over loading limited

    2700mm 3300mm Can Bus Technology Proportional controls Safety brackets Electric Aerial Order Picker

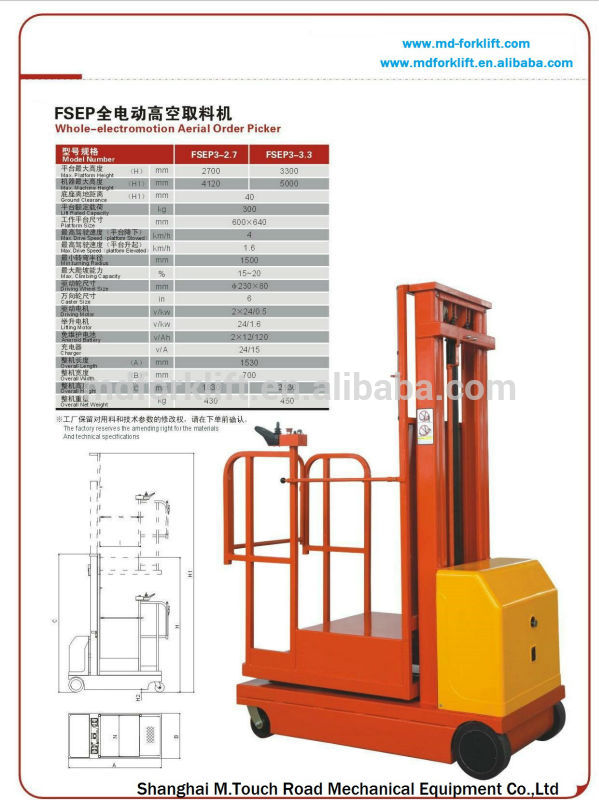

    ItemFSEP3-2.7FSEP3-3.3
    Max.Platform Height(mm)27003300
    Max.Machine Height(mm)41205000
    Ground Clearance(mm)40
    Lift Rated Capacity(Kg)300
    Platform Size(mm)600×640
    Max.Drive Speed(platform Stowed)(km/h)4
    Max.Drive Speed(platform Elevated)(km/h)1.6
    Min.turning Radius(mm)1500
    Max.climbing capacity(%)15-20
    Driving Wheel Size(mm)Φ230×80
    Driving Motor(v/kw)2×24/0.5
    Lifting Motor(v/kw)24/1.6
    Aneroid Battery(v/Ah)2×12/120
    Charger(v/A)24/15
    Overall Length(mm)1530
    Overall Width(mm)700
    Overall Height(mm)18302130

    Overall Net Weight(kg)


    430450
    FSEP3-2.7 FSEP3-3.3


    Proportional control Self-lock Gate on Platform Emergency Lowering System
    Drivable at Full Height Non Marking Tyre Automatic Brakes System
    Emergency Stop Button Cylinder Check Valve Forklift Holes
    Charger Protection Drawer Type Design


    Detailed Images

    Applications

    Self propelled order picker is widely used in warehouse, supermarket, factory daily aerial work maintenance and various kinds of aerial work.
