Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift from wholesalers

    Buy cheap Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift from wholesalers
    • Buy cheap Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift from wholesalers
    • Buy cheap Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift from wholesalers

    Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift

    Ask Lasest Price
    Brand Name : M&D
    Model Number : CPCY25
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200 set per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

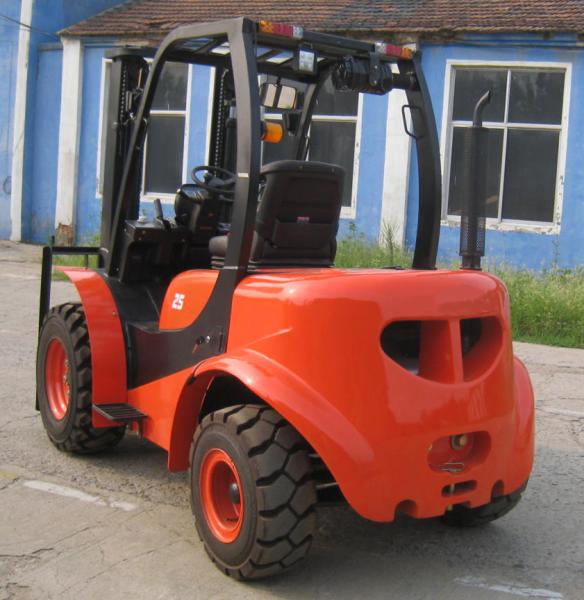

    Large Ground Rough Terrain Forklift 2.5 Ton 2 Wd Walk Behind Forklift All Terrain Forklift

    2.5 ton 2 wd Large ground clear small turning radius high grade ability compact construction rough terrain forklift

    *Adjustable steering wheel and safety seat.
    *The instruments offer an easy accesss to the working condition of the truck, thus makes handling process more efficient and safe.
    *Wide- view mast gives the operator an enhanced forward visibility, which adds great to the efficiency and safety of the operator.
    * High-strength overhead guard.
    *The powerful engine ensures our truck's high handling performance and offers an intrinsical safety and efficient operation.


    Main Specification:

    Standard China Xinchai or Quanchai 495 engine, optional Japan Isuzu, Yanmar and Mitsubishi engine;
    Automatic transmission;
    Standard 2-stage 3000mm mast, optional 3-stage 4500mm mast and others;
    Standard 1070mm fork, optional 1220mm, 1370, 1520mm, 1820mm and 2000mm forks;
    Optional side shifter, fork positioner and other attachments;
    Special Tubeless tire, optional solid tire;
    Warning and rear light;
    Special-big radiator for top-hot area.
    SPECIFICATIONS FOR 2.5 ton Rough Terrain Forklift Truck
    General
    Brand
    MD
    Model
    CPCD25Y
    Rated capacity
    kgs
    2500
    Load center
    mm
    500
    Power type
    Diesel
    Transmission
    Automatic
    Dimensions
    Lifting height
    mm
    3000
    Free lifting height
    mm
    80
    Turning radius
    mm
    2950
    Overall length
    mm
    4010
    Overall width
    mm
    1565
    Overall height (mast lowered)
    mm
    2280
    Overall height (mast raised)
    mm
    4065
    Overall height (overhead guard)
    mm
    2270
    Fork length
    mm
    1070
    Fork width
    mm
    122
    Fork thickness
    mm
    40
    Performance
    Max. driving speed (with/without load)
    km/h
    19.5/21
    Max. lifting speed
    (with load)
    mm/s
    545
    Max. traction
    (with/without load)
    kn
    15/10
    Gradeability
    (with/without load)
    %
    15/20
    Tilting angles
    (forward/backward)
    °
    6/12
    Service weight
    kg
    4200
    Engine
    Engine model
    Xinchai/Quanchai 4905engine
    Power
    kw
    42
    hp
    56
    Rated speed
    rpm
    2650
    Displacement
    L
    2.67
    Wheel
    Front overhang
    mm
    550
    Wheel base
    mm
    1800
    Front tread
    mm
    1240
    Rear tread
    mm
    1175
    Front tire
    12-16.5-14
    Rear tire
    27*10-12


    Main Features

    1. Strong engine system
    Our engine is the same as the engine used by Heli, Hangcha etc. Low emission, optimized distribution device and advanced fuel system make it has good low temperature starting performance, high reliability, compact structure, smooth power transmission characteristics.
    2.High quality imported separate combination instrument
    The performance of WECAN forklift imported high quality electronic instrument is reliable. It is convenient for the operator to observe various data from electronic instrument during operation.
    3.Wide visible range during operation ensures the safety and accuracy of work.
    4.Preventing slope sliding function
    Effectively prevent sliding when the body start again after stopping at the slopes and ensure safe operation
    5.Specially heightened air inlet position prevent the air filter away from dust and draw clean air. The special design improves work efficiency of the engine and prolong engine life.
    6.Super cooling system
    specially increased water tank. Water cooling area and water tank capacity is 1.25 times that of similar products,enables the forklift wouldn't emerge the overheating phenomenon.


    Advantage:

    1,Flexible hydraulic steering system.
    2.Security to meet off-road conditions
    3.Large ground clearance through sexual,minimum ground clearance vehicle reaches 220mm,through greatly increased.
    4.Body large,irregular and large hungry can carry cargo;high ground clearance,can cross the obstacles on the site.
    5.Full hydraulic steering system,greatly reducing operator fatigue;using transverse cylinder steering mechanism,steering reliable,compact.
    6.Off-road design lengthened and widened lengthened wheelbase and wider front and rear track,vehicle stability;drive axle with multi-fetal,more suitable for off-road conditions.
    7.Air filter with a vacuum alarm,double filtration;external high exhaust silencer,the external protective shield against hot processing;setting reversing buzzer,make driving safer.
    8.Comfort humanized design uses multifunction steering,European -style instruments,and equipped with car cigarette lighter;excellent damping performance seat belts,side-mounted joystick,so easy to operate,safe,flexible.

    1- Rough terrain forklift, wide view forklift mast, it is suitable for hard and rugged terrain working condition.

    2- It is tires are big patterm, wideth tires, It is specialized designed for hard , terrain road and way.

    3- Working condition of cross-country road is rugged, obstacles in the way. The ground clearance of normal forklift is too low, However, the rough terrain forklift designed rear ground clearance of 265 mm, improved its aim to best working for rough.

    4-The driving axle is conbined in Cast steel structure, it get more stength and reliable.

    5-You can optional Chinese engine, Japanese engine, which are prefer to you.
