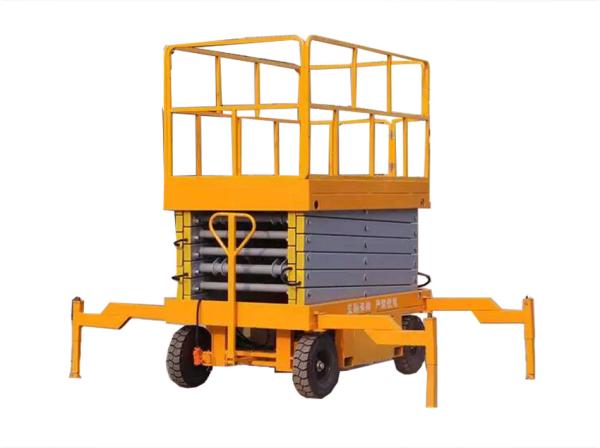

    500kg Aerial Work Platform 2.2kw , Height 20 Meters Heavy Duty Lift Table

    Ask Lasest Price
    Brand Name : M&D
    Model Number : FSEP3-2.7
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 200 set per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    500kg Aerial Work Platform 2.2kw , Height 20 Meters Heavy Duty Lift Table

    500kg Aerial Work Platform 2.2kw , Height 20 Meters Heavy Duty Lift Table


    movable scissor lifts have load capacity from 500kg - 2000kg work height from 4m-20m. As a professional high-altitude operation equipment CFMG movable scissor lifts are widely used in installation and maintenance....

    Main Features

    ---Vertical raising of platform
    ---Convenient operation (can be controlled both on the platform and the ground)
    ---Horizontal extension of deck(customized)
    ModelSJY0.5-12
    Platform size2.6*1.5 m
    Load capacity500 kg
    Platform height12 m
    Working height14 m
    Overall size2.8*1.71*1.85 m
    Motor3 kw
    Weight2260 kg
    Optional:
    1. DC battery
    2. AC&DC:
    3. Battery moving
    4. Battery moving & lifting
    5. Battery moving + AC&DC


    The scissors aerial work platform which is the newly developed series by MD can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.

    Energy-efficient electrical drive system is adopted with zero release and low noise and traceless tyre is configured so that environmental protection and convenient construction may be available even in closed environments such as office building, hospital, school etc.

    Perfect safety protection, independently-designed control system and abundant matching combinations may fully meet the customized demands of customer.

    Narrow-type design makes the complete machine pass single-door channel with ease and foldable rail makes transportation displacement more convenient. Unique “zero turning radius” design may be applied in narrow space flexibly. Meanwhile, it has 25% grade ability so that the driving operation is more relaxed.


    The hydraulic scissor lift is widely used for the equipments installations and maintenance at the following places like construction sites workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline.


    Parameter and sketch


    ModelLifting Height (m)Lifting Capacity (kg)Platform Size (mm)Total Dimension (mm)Motor Power (kw)Self Weight (kg)
    SJY0.3-443001700*10801820*1400*11802.2660
    SJY0.3-663001700*10801820*1400*12802.2750
    SJY0.3-883001800*10601900*1380*14602.2850
    SJY1-8810001940*13001920*1630*19802.21380
    SJY0.3-10103001920*12502040*1580*16602.21300
    SJY1-101010001920*13002060*1630*19802.21500
    SJY0.3-12123001920*12502150*1630*19802.21420
    SJY1-121210002400*13402530*1630*20003.02220
    SJY0.3-14143002400*13002600*1660*20802.21800
    SJY1-141410002600*13402800*1600*20803.02680
    SJY0.3-16163002650*13402800*1600*21303.02800

    Features

    1. High working capacity, easily pushed around, most spacious platforms for several people to work.

    2. High strength steel structures smoothly lift up and drop down, easily operated, few faults.

    3. Moving method: 4 wheel and 2wheel types are optional, it can be pneumatic rubber tires, solid rubber tires or polyurethane tires.

    4. Power sources: local power available at the working sites(110V,220V,380V,415V),diesel engines and generators

    5. Lifting height: 4m,6m,8m,10m,12m,14m,16m,18m hydraulic lift

    Application:

    * Find wide application in automobile showrooms, two or three wheeler lifting, loading and unloading from trucks.

    * Two & three wheeler lifting Loading & unloading from truck Automobile showrooms

    * Electrical and building roof maintenance and Industrial application
