    Red Steel Standard Mobile Container Crane , Port Gantry Crane Container Handling Crane

    Ask Lasest Price
    Brand Name : MD
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 100 set per month
    • Product Details
    • Company Profile

    Red Steel Standard Mobile Container Crane , Port Gantry Crane Container Handling Crane

    red steel standard container crane,port gantry crane,container handling crane

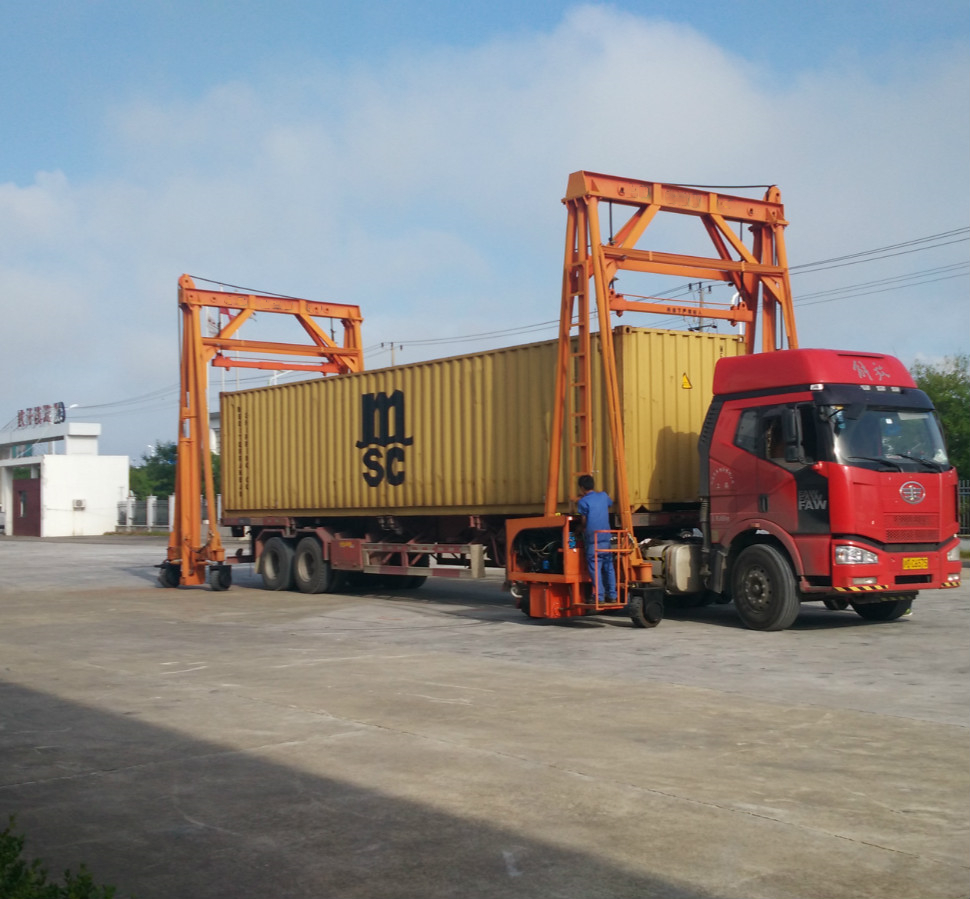

    BSJD360-400 mobile container crane is designed for small and medium sized container yard, SMEs containerized production, the lowest operating costs of one Container crane (Container crane earth). The main functions are: the container and the container is unloaded at lifting containers onto flatbedimplemented on the work site from the container flatbed truck, the operator can be loaded to the continuity of the container. At the same time, do transshipment containers, greatly reducing the waiting container trucks loading time, you can improve the efficiency of container trucks use 12 to 15 times.
    The car with 490BPG diesel-powered, low noise, low vibration characteristics of the vehicle. Body by a steel frame, steel, hydraulic drive system of hydraulic motors, gear pumps, steering cylinder, lifting cylinder, double-acting balancing valve, walking solid tires and other components. Lifting with a diameter of 180 mm cylinder, lifting capacity, low pressure systems, hoisting fall stable, safe, efficient loading and unloading. Use two-wheel drive, four-wheel steering, the maximum angle of 110 degrees, to achieve any angle of the steering and panning, small turning radius. Control system consists of a complete set of body composition and the operating
    lever, flexible operation, simple and convenient. The car requires a flat, after the hardening, no potholes use of the site. Suitable for handling logistics companies, warehouses, docks, container yard, container yard and other places, it is a cheap, convenient and practical container lifting equipment.


    specifications
    1model numberBSJD300BSJD360BSJD400
    2total weightT77.58
    3rated capacityKg300003600040000
    4max. steering speed(without load)Km/h3.53.53.5
    5min. passageway widthmm320032003200
    6rated torque of hydraulic motorNm101010101010
    7max.lifting speedwithout loadmm/s353535
    8max.falling speedmm/s252525
    9max.lifting speedwith loadmm/s252525
    10max.falling speedmm/s303030
    11engine powerKw373737
    12system pressureMpa141516
    13rotation angle of turning wheel110110110
    specifications of structure
    14L*W*Hmm5055×2655×6320
    15max. height of lifting beammm466046604660
    16lowest height of lifting beammm227022702270
    17

    The minimum ground
    clearance

    mm110110110
    18Longitudinal trackmm220522052205
    19crosswise treadmm372537253725
    20inside width of crosswisemm3275/33803275/33803275/3380
    21Wire rope diametermm282828
    22Tire sizemm450×180450×180450×180
