    Yellow Color Steel Scissor Lift Hand Pallet Truck , Manual Hydraulic Stacker Straddle Lift Truck

    Ask Lasest Price
    Brand Name : MD
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 1000 set per month
    • Product Details
    • Company Profile

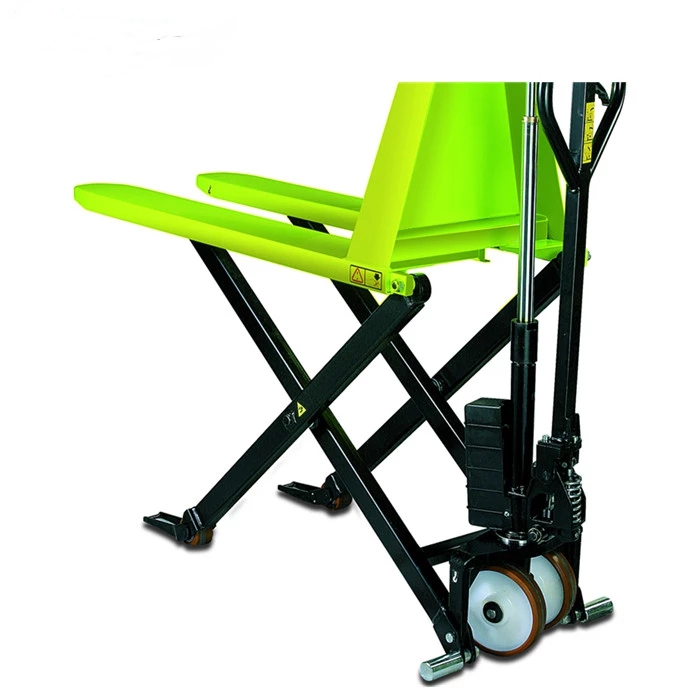

    Yellow Color Steel Scissor Lift Hand Pallet Truck , Manual Hydraulic Stacker Straddle Lift Truck

    Model: High scissor lift hand pallet truck MD01

    ​​​Capacity: 1000kg

    Lowered fork height: 85mm

    ​Max. lift height: 800mm

    ​Fork length: 1220mm

    Steering wheel: Φ180*50mm

    ​Fork wheel: Φ74*50mm

    ​Turning radius: 1670mm

    ​Service weight: 104-115kg


    The products are mainly used in warehousing operations,logistics base. Also applies to the process flow of the workshop can be used as a working platform,when the height less than 300mm,the equivalent of the pallet trucks.


    Advantages:

    • The high lift hand pallet truck offers the users an efficient and versatile tool for material handling.

    • Improved safety: Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.

    • Great stability: Extra long front legs increase the stability when handling unevenly loaded pallets.

    • Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg.

    • Easy maneuvering of loads throughout work place.

    • Easy placing of load to correct ergonomic work height.

    Details:

    1. Adopts Single stage piston hydraulic cylinder;

    2.Maintenance-free battery can save most maintenance time and cost;
    3. Apply to the workshop process flow, and also can be used as a working platform, when the forks height less than 300 mm, it acts as a pallet truck;
    4. Safety device on the handle can prevent sudden drop due to an accidentally touch;
    5. Accords with the EN1757-4 standard


    SPECIFICATIONS
    ModelMD01
    Capacitykg1000
    Lowered fork heightmm85
    Steering wheelmm180*50
    Fork wheelmm74*50
    Fork lengthmm1220
    Width overall forksmm550/685
    Aisle width for pallets 1000*1200 crosswaysmm1985
    Aisle width for pallets 800*1200 lengthwaysmm1985
    Turning radiusmm1670
    Service weightkg104-115

    Scissor Lift Hand Pallet Truck With Extra Long Front Legs 1670mm​​ ​Turning Radius


    Tag:

    manual pallet jack, mobile pallet truck

    Q: Are you trading company or manufacturer ?
    A: We are trading company and factory

    Q:MOQ is?
    A:Our MOQ is one set

    Q: How can I get the after-sales service?
    A: The global service network is still in construction, but you can contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

    Q: How to pay for it ?
    A: Generally, we used T/T: 30% as deposit and the balance will be paid before shipment. L/C is available according to actual conditions.

    Q: Is your products customized?
    A:Yes, because the working conditions are different, all our products are customized depending ondetail requirement!So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote! are factory.
