Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity

Shanghai M.Touch Road Mechanical Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity from wholesalers

    Buy cheap Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity from wholesalers
    • Buy cheap Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity from wholesalers
    • Buy cheap Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity from wholesalers

    Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity

    Ask Lasest Price
    Brand Name : MD
    Model Number : DF-20
    Certification : CE ISO
    Price : negotiable
    Supply Ability : 1000 set per month
    • Product Details
    • Company Profile

    Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity

    Paper Reel Pallet Jack Truck , Heavy Duty Pallet Jack 1000kg Capacity
    Detailed Product Description
    Capacity:1000kgDiameter Of Bale:700-1200mm
    Height Of Handleless:431.5mmFork Length:1150mm
    Max. Width Overall Forks:965mmSteering Wheel:200mm
    Fork Wheel:80mmService Weight:135kg

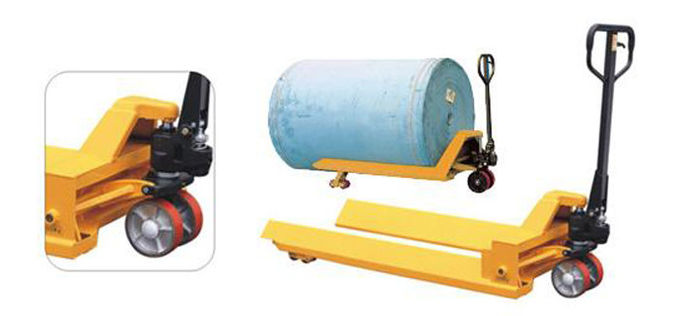

    1000kg paper reel carrier hand pallet truck with 700-1200mm diameter of bale

    Quick Details


    Model: Reel carrier hand pallet truck BFJ

    ​​​Capacity: 1000kg

    Diameter of bale: Φ700-1200mm

    Height of handleless: 431.5mm

    Fork length: 1150mm

    ​Max. width overall forks: 965mm

    Steering wheel: Φ200mm

    ​Fork wheel: Φ80mm

    ​Service weight: 135kg


    Advantages:

    • Reel carrier hand pallet truck with 1 ton capacity.

    • ​Diameter of bale is Φ700 - Φ1200mm.
    • Suitable for textile factories, Paper factories, Wood factories and other enterprises.


    SPECIFICATIONS OF REEL CARRIER HAND PALLET TRUCK
    ModelBFJ
    Capacitykg1000
    Diameter of balemm700-1200
    Height of handlelessmm431.5
    Fork lengthmm1150
    Max. width overall forksmm965
    Steering wheelmm200
    Fork wheelmm80
    Weightkg135

    Paper Reel Pallet Jack Truck , Heavy Duty Pallet Jack 1000kg Capacity


    Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying goods fork into the tray hole, by the ability to drive hydraulic system to realize the pallet load lifting and falling, and pulled by human complete handling operations.

    It is the simplest and most effective tray in the transport, the most common type of loading and unloading,handling tools,widely used in logistics,warehouses, factories, hospitals, schools, shopping malls, airports, stadiums, station, airport and so on


    Brand New stainless steel hand pallet truck of superior quality and competitive price

    We used 304 stainless steel totally except wheels.

    World class quality

    Rubber coated handle comfortable even under extreme temperature conditions.
    Fully sealed galvanized hydraulic unit housing.

    Single valve cartridge for easy maintenance.
    Powder coated chassis made of high grade steel.
    Lead-in and lead-out rollers reduce damage to pallets.


    - Easy handling & easy lifting.

    - Baked enamel Coating.

    - With an overload relief value to avoid misuse due to over Loading.

    - Steer and fork wheels are made by steel and covered by Polyurethane.


    Paper Reel Manual Pallet Truck , Heavy Duty Pallet Jack Truck 1000kg Capacity


    ModelMS20SMS20LMS25SMS25LMS30SMS30L
    Capacity(kg)200020002500250030003000
    Lifting Height(mm)115
    Min. Fork Height(mm)85(or 75)
    Max. Fork Height(mm)200(190)
    Fork Lenght(mm)115012201150122011501220
    Overall Width(mm)540685540685540685
    Fork width(mm)160
    Load Roller(mm)Tandem 82x70, Single 82x93, Nylon, Polyurethane
    Steering Wheel(mm)200x50(Nylon, polyurethane or Rubber)
    Net Weight(kg)808382858587

    Special fork length available, 800mm, 950mm, 1000mm, 1500mm, 2000mm


    Overall weight:220kg,

    packing list: 2300*550*750/2300*700*730mm ,

    by sea & trucks , 112UNITS FOR 20’C ,188 UNITS FOR 40’C ,

    HS CODE: 8716 8000 00


    FAQ

    Q1:Are you Factory?Yes
    Q2:Are the forklift trucks covered by a warranty?Yes.All our machines carry a full 1 year major parts warranty.
    Q3:Can I get discounts?Yes.For big order,old customer and frequent customers,we give resonable discounts.
    Q4:Can I place mix order?For example,I need 2 pc Electric stacker and 1 pc Hand Pallet Truck,can this ok?Yes,of course.You can mix diff model as your wish.
    Q5:Can you add our own logo on the products or use our designs?

    Yes,of course you can add logo on your products!

    We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.

    Q6:Can you send the machine to my factory in other city to load the container?Yes,please tell US the detail address,we can arrange to send your factory in time.
    Q7:How can the machines be send to us?The transportation depends on client's choice,usually by sea,by train,by air etc.You also can choose other shipping method and inform us before shipment
