    AC Power Electric Reach Stacker 1.5 Ton 2 Ton 2.5 Ton Electric Reach Forklift Truck

    Ask Lasest Price
    Brand Name : M&D
    Model Number : CQD15,CQD16,CQD20,CQD25
    Certification : CE,ISO,UL,SGS
    Price : $6000-$15000mm/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units/month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    AC Power Electric Reach Stacker 1.5 Ton 2 Ton 2.5 Ton Electric Reach Forklift Truck

    Chinese good-looking 1500kg 2000kg 2500kg electric reach stacker 1.5 ton 2 ton 2.5 ton electric reach forklift truck


    CQD15/16 REACH TRUCK TECHNOLOGY SPECIFICATION
    SPECIFICATION1ManufacturerM&D
    2ModelCQD15CQD16
    3Max.lift capacitykg15001600
    4Load centermm500
    5Power unitBattery
    6Operator typeStanding type
    7Tires typefwd/bwdSolid tire
    DIMENSIONS8Max.lift heightmm30004000
    9Free liftmm105
    10Fork sizeL*W*Hmm920*100*35
    11Tilt anglefwd/bwddeg3/5
    12Total length without forkmm17101890
    13Total widthmm1090
    14Mast height (fork lowered)mm19952495
    15Overall height fork raisedmm39254925
    16Height of head guardmm2260
    17Turning raduis (outside)mm15801760
    18Distance from front wheel center to forks facemm165170
    19Right angle stacking aislemm24702540
    20Reach distance(mast)mm560705
    PERFORMANCE21Max. travelling speed fw/bwfull loadkm/h10.5
    no loadkm/h11
    22Lifting speedfull loadmm/s270
    no loadmm/s510
    23Lowering speedfull loadmm/s450
    no loadmm/s550
    24Gradeabilityfull load%10
    WEIGHTS25Truck weight(without battery)kg17351725
    26Weight Distribution
    (with standard battery)
    full loadfrontkg23502150
    rearkg13751565
    no loadfrontkg710670
    rearkg15151545
    CHASSIS & WHEELS27TiresNumberfront/rear2/1X+2 (X=drivenl)
    Sizefront,loadФ254x120
    rear,driveФ330x145
    rear,steeringФ178 x 73
    28Wheelbasemm13451525
    29Treadfront/rearmm970/635
    30Ground Clearenceat lowest pointmm75
    mast75
    31Brakeservice brakeMechanical
    parking brakeMechanical
    DRIVE LINE32Battery(standard)Voltage/capacityV/AH48/280
    33Weightkg490
    34Electric motorsdrive motorkw/60min4.6
    hydraulic motorkw/5min8.2
    steering motorkw/60min0.3
    35Control typeDriving motorAC Converter
    Hydraulic motorDC Chopper
    Steering motor

    DC Chopper

    36Operating Pressurekg/cm2

    140








    Specification for M&D good-looking electric reach truck 1.5 ton reach forklift


    Product Features


    1. Safety Device for neutral position to increase the safety of forklift;

    2. High Strength frame to protect the operator;

    3. Oil-way stop Valve,to protect the operator and goods;

    4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;

    5. Inching capacity, the forklift can finish the extremely adjustment during moving;

    6. With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;

    7. To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;

    8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;

    9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;

    Packing & Delivery

    Standard export packaging, bubble bag packaging, wrapped film packaging

    HS Code 8427109000


    64x64 64x64

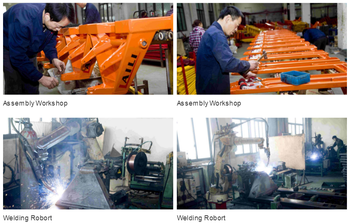

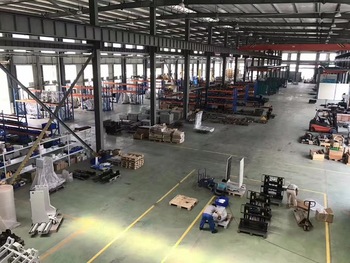

    Our Factory


    The M&D Company mainly deals in forklift trucks, material handling, storage and transportation equipment, lifting equipment, port and wharf products, etc. Our products have passed CE, GS, UL, ISO 9001 and other international quality system certification. Products are widely used in construction sites, industrial and mining enterprises, stations, wharfs, power, postal, urban construction, gardening, and other fields, involving a number of industries.Facing the fierce market competition, the company establishes the global brand strategy and produces more safe, reliable and stable product quality for you. n line with the business philosophy of "pioneering and enterprising" and "pragmatic, dedicated and innovative", the company insists on taking high and new technology as the leading factor, taking market demand as the guide, aiming at continuously improving the scientific and technological content of products and developing new products, inheriting historical responsibilities, exploring the future, and striving for and perpetuating the development of national industry. Never stop! Win the world with honesty!

    The company's main products: 1-48T internal combustion forklift, 0.5-12T electric AC forklift, 2-7T LPG forklift, 1-2.5T Reach forklift truck, 2-10T tractor, 0.5-2T electric stacker, 1-5T electric truck, narrow-track forklift, picking truck, various lifting platforms, various kinds of hand animal material handling trucks, 0.8-6T wheel loader, excavator, bulldozer Tiller, slipper, frontal crane, container crane, aircraft tractor, floor washer, and other related logistics equipment.

    64x64 64x64


    64x64 64x64

    After-Sales Service


    Honest & Faithful: It is our working style and base of which helps us to build up long term and trusted relation shipment with our customers, staffs and partners.


    Quality: We pursue high quality of product and service. We are serious-minded and cautious for any project and tasks and try our best to be perfect in leading area in this industry.


    Efficiency: Higher efficiency is the road of survival. It’s our victorious talisman by enhancing communication and quickly responding to resolve your difficulties and problems. We deny all delaying and making excuse.


    Customers first : We provide excellent compensation, benefit with healthy and comfortable office environment. As to the customers, It’s our happy staffs who will try their best to bring you great service experience


    We are adhere to business concept of “ Faith, Quality, Efficiency”, Try to be professional. We strongly believe that high quality product, reasonable price and faithful service will make you satisfies.


    64x64 64x64


    FAQ


    1. Q:Why choose us?

    A:M&D is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.

    2. Q:What is the product range of our factory ?

    A:M&D is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks,Warehousing equipment, port equipment and related attachments. We can also customize non-standard products according to customer's requirements.

    3.Q:What Certificates do we have?

    A:All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.

    4.Q:How about our delivery time?

    A:Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.

    1. Q:Can we provide OEM service?

    A:M&D can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

    1. Q:What payment terms can we accept?

    A:Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
