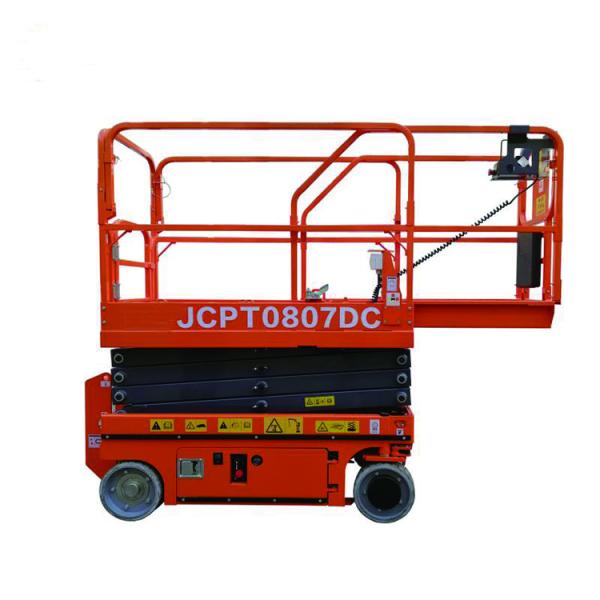

24V 8m Electric Hydraulic Scissor Lifting Platform

    Buy cheap 24V 8m Electric Hydraulic Scissor Lifting Platform from wholesalers

    Buy cheap 24V 8m Electric Hydraulic Scissor Lifting Platform from wholesalers
    • Buy cheap 24V 8m Electric Hydraulic Scissor Lifting Platform from wholesalers
    • Buy cheap 24V 8m Electric Hydraulic Scissor Lifting Platform from wholesalers

    24V 8m Electric Hydraulic Scissor Lifting Platform

    Ask Lasest Price
    Brand Name : M&D
    Model Number : YM-JCPT1012DC
    Certification : CE,ISO
    Price : Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 1000Units/Month
    Delivery Time : 5-20Days
    • Product Details
    • Company Profile

    24V 8m Electric Hydraulic Scissor Lifting Platform

    Product Description

    8m Electric Hydraulic Material Electric Motor Scissor Lifting Platform


    Application


    The self propelled aerial working platform are designed to improve human aerial working condition.

    Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

    All our platform are stable performance, flexible and smarter operation,more reliable as passed

    by endurance test.


    Standard features

    Automatic pit protection

    Limit switch

    Automatic fault diagnosis

    Automatic tilt protection

    Satety maintenance support rod

    Emergency Lowering system

    Automatic braking system

    Pedal operated extended platfrom
    Folded Guardrails

    Horn, Cellular alarm, working Hour Meter

    Anti clamping hand

    With toolbox and aerial electrical take

    Extension platform

    Strobe light

    Multiple signs

    Visual control panel power, battery power,etc

    Two control panels, emergency button

    Bilateral side pull door open,covenient maintenance etc,Forklift holes,hook holes,rope holes ,etc for Standard transportation


    Electric Drive Series8m
    Model(Electric drive)YM-JCPT1012DC
    S.W.L450kg
    S.W.L on extension113kg
    Max. working height10m
    Max.platform height8m
    Overall length2.435m
    Overall width1.15m
    Overall Height(rails up)2.32m
    Overall Height(rails down)1.78m
    Platform size2.27m*
    1.12m
    Platform extension size0.90m
    Drive motor24V/1.5kw
    Lift motor24V/3.3kw
    Travel Speed(stowed)4.0kw/h
    Travel Speed(raised)0.8kw/h
    Up/down Speed36/33sec
    Battery4*6V/225Ah
    Charger24V/25A
    Max. climbing ability25%
    Max.working angle2°/3°
    Tire sizeΦ381mm*
    127mm
    Service Weight2305kg

    Packaging & Shipping

    Export Package with pallet.

    Our Services

    Honest & Faithful: It is our working style and base of which helps us to build up long term and trusted relation shipment with our customers, staffs and partners.


    Quality: We pursue high quality of product and service. We are serious-minded and cautious for any project and tasks and try our best to be perfect in leading area in this industry.


    Efficiency: Higher efficiency is the road of survival. It’s our victorious talisman by enhancing communication and quickly responding to resolve your difficulties and problems. We deny all delaying and making excuse.


    Customers first : We provide excellent compensation, benefit with healthy and comfortable office environment. As to the customers, It’s our happy staffs who will try their best to bring you great service experience


    We are adhere to business concept of “ Faith, Quality, Efficiency”, Try to be professional. We strongly believe that high quality product, reasonable price and faithful service will make you satisfies.

    Company Information

    Shanghai M.Touch Road Mechanical Equipment Co,Ltd, established in Mar of year 2012, Its headquarter located in Nanhui industry zone , Pudong , Shanghai China, is a professional company by providing kinds of products and services for sets of forklift and fittings, electronic moving equipment, storage equipment and engineering and piping projects and accessories. We also provide high quality and just in response services in leasing and repair & maintenance of domestic market.


    After 7 years of hard work ,The company keeps growing, conforms to market demand, expands business scope, and lays a good foundation for future development.In 2018, a new engineering machinery and equipment manufacturing enterprise leading the industry was established: Manly forklift truck (Shanghai) Co., Ltd.


    FAQ

    1. Q: Why choose us?

    A:We have all the series forklift parts, You can find all you want by one-stop purchase here.
    We have more than 15 years experience in making dental unit and our products exporting more than 40 countries .

    2. Q: Do your products have quality assurance?

    A: For forklift parts business, We promise 100% genius parts. Genuine parts make better reliability and longer life. Beside Genuine parts, we also accept OEM Customer’s brand.

    3. Q: How is your price?

    A: Because of the top grade authorization, we have better price than the other supplier
    by 5% at least . We 100% guarantee original parts.

    4. Q: What is your sample policy?

    A: We are honored to offer you samples.Please pay the sample charge and postage in advance. However, we will return them to you when ordering, or deduct them from the order.We accept the sample payment via Western Union or T/T.

    5. Q: How long is warranty for items?

    A: 1 year and if damaged during the warranty period we can provide accessories
