    2t 3M 24V Workshop Battery Operated Pallet Stacker

    Ask Lasest Price
    Brand Name : M&D
    Certification : CE,ISO
    Price : negotiable
    Delivery Time : 3-20days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500units/month
    • Product Details
    • Company Profile

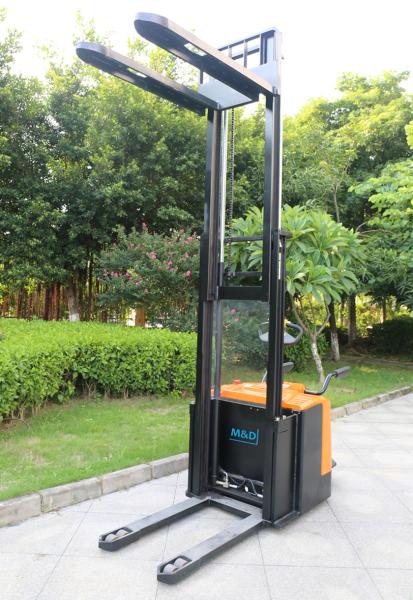

    2t 3M 24V Workshop Battery Operated Pallet Stacker

    2t 3 m Brand new 24V battery powered pallet stacker electric forklift


    Product Description

    1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.
    2. Without frequently adjustment, Damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running.
    3. High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling.
    4. Alternating current driving, no carbon brush, free maintenance, highly efficient motor, accuracy control, powerfully output.
    5. We consider emergency power switch as a standard configuration. Just press the emergency stop button to cut off all the power in case of an emergency, the car can stop immediately.
    6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.
    7. The door frame design is wide field of vision, dedicated channel steel, high strength.


    Main specifications

    Model ES-1050-AES-1045-AES-1040-A
    power electricelectricelectric
    operator type riderriderrider
    load capacitykg100010001000
    load centermm600600600
    lift heightmm500045004000
    lowered heightmm909090
    fork size - th/w/lmm56 / 160 / 115056 / 160 /115056 / 160 /1150
    overall fork widthmm560560560
    mast collapsed heightmm218017801995
    mast extended heightmm565051504650
    overall length - w. o . platformmm205020502050
    overall widthmm875875875
    ground clearancemm303030
    turning radiusmm160016001600
    work aisle width - 800x1200mm255025502550
    battery voltageV/Ah24 / 16524 / 16524 / 165
    traction motorkW1.51.51.5
    lift motorkW222
    travel speed - w./w.o. loadkm/h4.5 / 5.54.5 / 5.54.5 / 5.5
    weight - less batterykg720760790


    Advantages:​​​​

    • AC motor eliminates carbon brush replacement.
    • Multi function display instrument has electric power display, fault code display, working time cumulative display and fast/slow speed display.
    • The side door and the battery cover can be opened, the battery can pull out from the side, which is beneficial to the exchange and maintenance of the battery.
    • There is a shock absorber to reduce noise.
    • The handle is equipped with emergency reverse switch, make the electric pallet stacker operation more safe.
    • The eletric pallet stacker is braked when the handle in both vertical and horizontal directions, so as to improve the safety of the whole vehicle.
    • Emergency power off switch.
    • Automatic deceleration function.
    • Built in unloading valve to protect the eletric pallet stacker from overloading and improve reliability.
    • Stepless speed change control.
    • Low center of gravity.
    • Vertical driving wheel.
    • Frame and mast is separable.
    • Free lift.
    • Strong imported mast.
    • CANbus technology.

    FAQ
    Q1: What is your lead time?
    A1: This is our standard model, usually 10 days business. If you need it urgently, pls let us know before you order.
    Q2: What is the MOQ of your products?
    A2: 1 unit.
    Q3: What is the warranty?
    A3: 1 year. We will provide spare parts for free within the warranty.
    Q4: What is your payment terms?
    A4: 30% Advance and balance before delievery by T/T. (credit card, L/C are available)
    Q5: Can I get Discount from buying your goods?
    A5: The price depends on the quantity, we’ll automatically making discount to our customer.
    Q6: Our location voltage is 110V, 60Hz, does it ok for us?
    A6: That's no problem, we will according to your local to adjust the voltage and plug for you.
    Q7: How about your service?
    A7: 1. If you have any question, please don't hesitate to contact us,all questions will be replied within 24 hours
    2. We greatly appreciate your Positive Feedback. Pls do NOT leave negative feedback without asking for help.
    3.Our aim is to provide Top Level Customer Service, so we will try our best to solve any problems,
